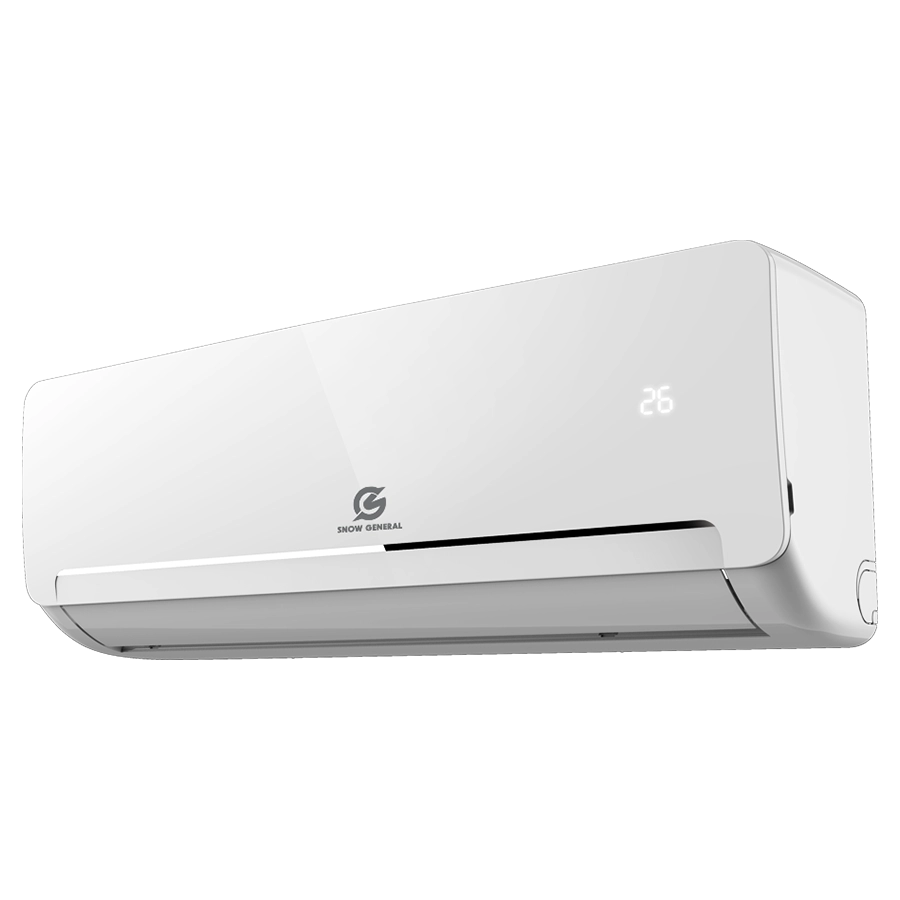

Diamond Series – Rotary
Diamond Series – Rotary
Diamond Series – Rotary AC units are designed to deliver premium cooling performance with enhanced durability and efficiency. Engineered with advanced rotary compressor technology, these systems provide fast and consistent cooling while maintaining smooth and energy-efficient operation. Built using high-quality components and modern engineering, the Diamond Series – Rotary ensures long-lasting reliability even during continuous use in demanding conditions.
T1 Cooling Capacity
1 Ton
T3 Cooling Capacity (W)
3000
T3 EER for Cooling (Btu/h)/W
11.88(Btu/h)W | 8.48(Btu/h)W
Cooling Power (kW)
1.01kw | 1.21kw
Cooling Current (A)
4.5A | 5.3A
Max Power Input (kW)
1.4kW
Max Current (A)
10.0A
Air Volume (m³/h)
600m³/h
Power Supply
220–240V~/50Hz
Max High Pressure (MPa)
4.3MPa
Max Low Pressure (MPa)
1.15MPa
Inside Noise Level (dB(A))
41dB(A)
Outside Noise Level (dB(A))
53dB(A)
Compressor Type
T3 Rotary
Compressor MFG
HIGHLY
Compressor Model
ASG130MV-AT3
Indoor Unit Dimensions (mm)
837×296×205
Outdoor Unit Dimensions (mm)
795×525×290
Net Weight Indoor Unit (kg)
9.5kg
Net Weight Outdoor Unit (kg)
31kg
Gross Weight Indoor Unit (kg)
12kg
Gross Weight Outdoor Unit (kg)
35kg
Electric Shock Prevention
Class I
Waterproof Class Indoor
IPX0
Waterproof Class Outdoor
IPX4
Refrigerant
R410A
Charge (kg)
0.83kg
Loading Capacity (40’ HC)
210
T1 Cooling Capacity
1.5 Ton
T3 Cooling Capacity (W)
4483
T3 EER for Cooling (Btu/h)/W
11.942(Btu/h)W | 8.53(Btu/h)W
Cooling Power (kW)
1.47kw | 1.79kw
Cooling Current (A)
6.8A | 8.1A
Max Power Input (kW)
3.0kW
Max Current (A)
14.0A
Air Volume (m³/h)
950m³/h
Power Supply
220–240V~/50Hz
Max High Pressure (MPa)
4.3MPa
Max Low Pressure (MPa)
1.15MPa
Inside Noise Level (dB(A))
47dB(A)
Outside Noise Level (dB(A))
57dB(A)
Compressor Type
T3 Rotary
Compressor MFG
GMCC
Compressor Model
KSF180V1UKPC3
Indoor Unit Dimensions (mm)
952×310×227
Outdoor Unit Dimensions (mm)
830×660×315
Net Weight Indoor Unit (kg)
12.5kg
Net Weight Outdoor Unit (kg)
42.5kg
Gross Weight Indoor Unit (kg)
14.5kg
Gross Weight Outdoor Unit (kg)
47.5kg
Electric Shock Prevention
Class I
Waterproof Class Indoor
IPX0
Waterproof Class Outdoor
IPX4
Refrigerant
R410A
Charge (kg)
1.03kg
Loading Capacity (40’ HC)
155
T1 Cooling Capacity
2 Ton
T3 Cooling Capacity (W)
5833
T3 EER for Cooling (Btu/h)/W
12.28(Btu/h)W | 8.87(Btu/h)W
Cooling Power (kW)
1.86kw | 2.24kw
Cooling Current (A)
7.9A | 9.5A
Max Power Input (kW)
3.2kW
Max Current (A)
14.0A
Air Volume (m³/h)
1300m³/h
Power Supply
220–240V~/50Hz
Max High Pressure (MPa)
4.3MPa
Max Low Pressure (MPa)
1.15MPa
Inside Noise Level (dB(A))
50dB(A)
Outside Noise Level (dB(A))
59dB(A)
Compressor Type
T3 Rotary
Compressor MFG
GMCC
Compressor Model
ASG220S1SMP
Indoor Unit Dimensions (mm)
1082×330×233
Outdoor Unit Dimensions (mm)
900×700×350
Net Weight Indoor Unit (kg)
13kg
Net Weight Outdoor Unit (kg)
47.5kg
Gross Weight Indoor Unit (kg)
17.5kg
Gross Weight Outdoor Unit (kg)
53kg
Electric Shock Prevention
Class I
Waterproof Class Indoor
IPX0
Waterproof Class Outdoor
IPX4
Refrigerant
R410A
Charge (kg)
1.15kg
Loading Capacity (40’ HC)
144
Features
Independent
Dehumidifier
Noise
Reduction
Easy Cleaning
High Density
Filter
Soft Touch
Start
Experience year-round comfort with advanced, energy-efficient air conditioning systems designed to deliver powerful performance and dependable reliability. Built with high-quality components and modern innovation, these systems create a consistently comfortable indoor environment in homes, offices, and commercial spaces.
Specifications
Cooling Performance
- Cooling Capacity: 18,000 BTU/h
- Cooling Area Coverage: Up to 180 sq. ft.
- Compressor Type: Rotary/Inverter
- Cooling Technology: Fast Cooling, Turbo Mode
Power & Energy Efficiency
- Power Supply: 220-240V, 50Hz
- Rated Power Input: 1500W
- Energy Efficiency Ratio (EER): 3.5
- Star Rating: 5-Star (BEE Certified)
- Annual Power Consumption: 1200 kWh
Dimensions & Weight
- Indoor Unit Dimensions (WxHxD): 900 x 300 x 220 mm
- Outdoor Unit Dimensions (WxHxD): 850 x 550 x 300 mm
- Weight (Indoor/Outdoor): 12 kg / 35 kg
Additional Information
- Warranty: 1 Year on Product, 10 Years on Compressor
- Included Accessories: Remote, Installation Kit, User Manual
- Country of Manufacture: Japan/China/India
Bringing happiness and comfort to every customer through high-quality air conditioning solutions designed for reliable performance and superior cooling. Our systems combine advanced technology, energy efficiency, and durable design to create a refreshing indoor environment, ensuring consistent comfort and satisfaction in homes and workplaces.
Reviews
7.5
Excellent product!
This AC is powerful, quiet, and smart—perfect for anyone who wants cooling with convenience. Highly recommend!
Powerful, quiet, and smart AC!
I love this air conditioner! It cools fast, runs quietly, and saves energy. The Wi-Fi control is super handy, letting me adjust settings from my phone.
It could be better!
It cools quickly, runs quietly, and saves energy, making it a solid upgrade from my old AC.
